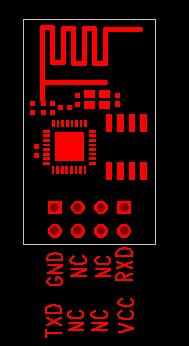

Version 1

Alternative names

ESP-?

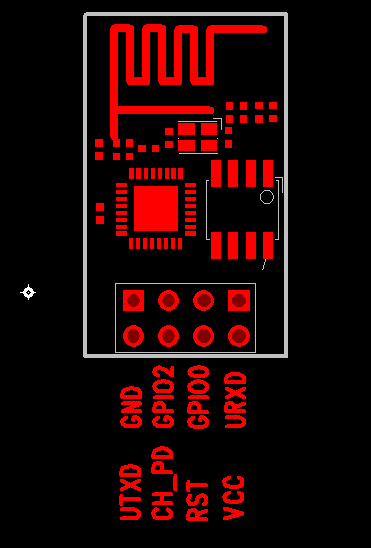

Version 2

Info

For starting the chip bind pin CH_PD to VCC (3.3v)

Alternative names

ESP-?

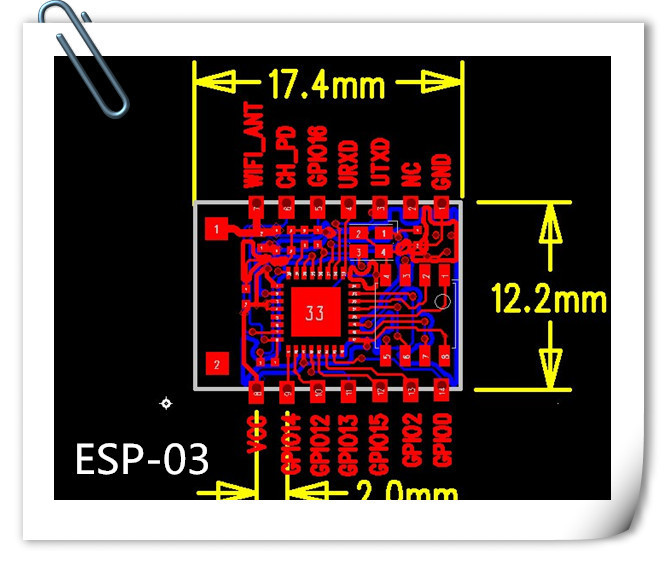

ESP-03

Info

Starting the module bind CH_PD to VCC (3.3v) and GPIO15 to GND

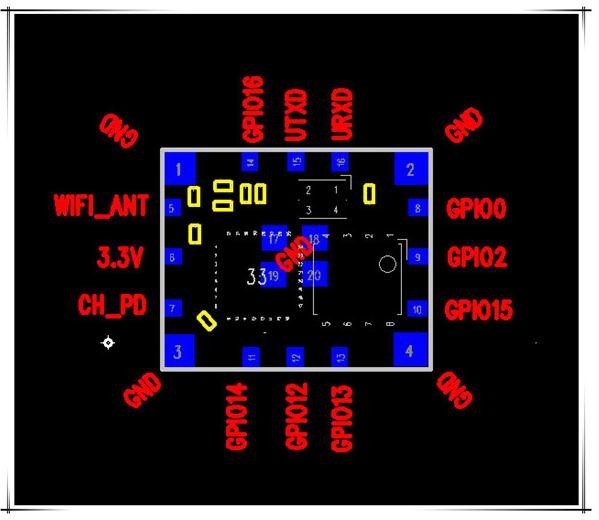

ESP8266MOD
